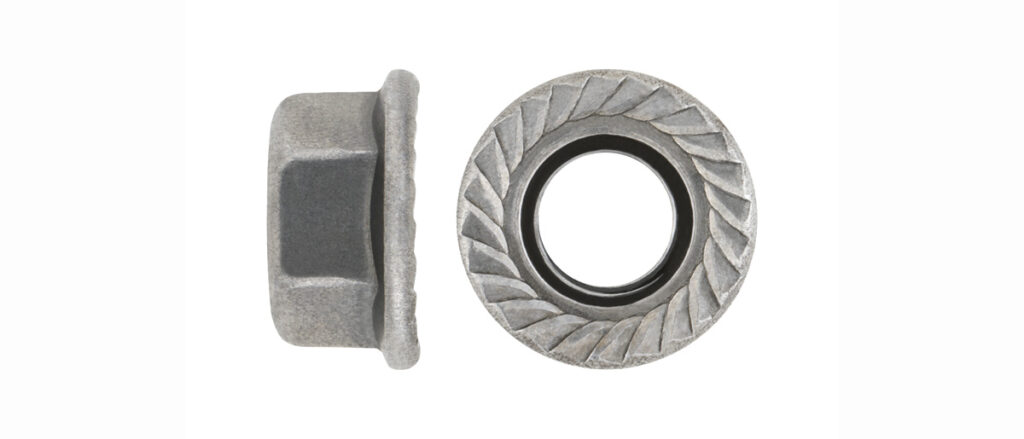

Hexagon Nuts with Flange (DIN 6923)
Equivalent Standard: ISO 4161 | EU 1661

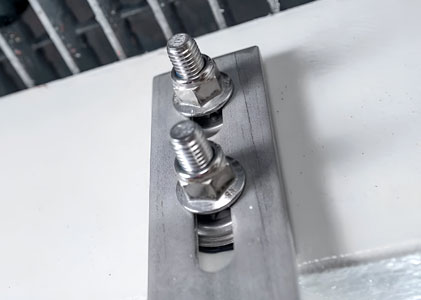

Flange nuts from BRK Fasteners possess a few of the defining attributes of a washer. They are used to spread the load evenly to avoid uneven fastening surface of the operations. They also ensure that the fasteners are in place without moving about loosely. These wide flange nuts can be used as a replacement to the nut and washer combination. Therefore, these nuts are a cost-effective and quality substitute for nuts and washers if your project is a large scale one.
Flange weld nut come in varying sizes to allow its use with several bolts, each with different dimensional standards. Another advantage of these nuts is that they prevent the loosening of machining and electrical components while still allowing the free parts to move freely. Striking the perfect balance, in this case, has to be done with careful calibrations. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant.
- DIN 6923
- Quality: C.10,C.8, INOXIDABLE
- Coating: A2, BICRO, CINC., DACROMET, PAVON., SIN BANO
- Thread: METRIC



DIN 6923

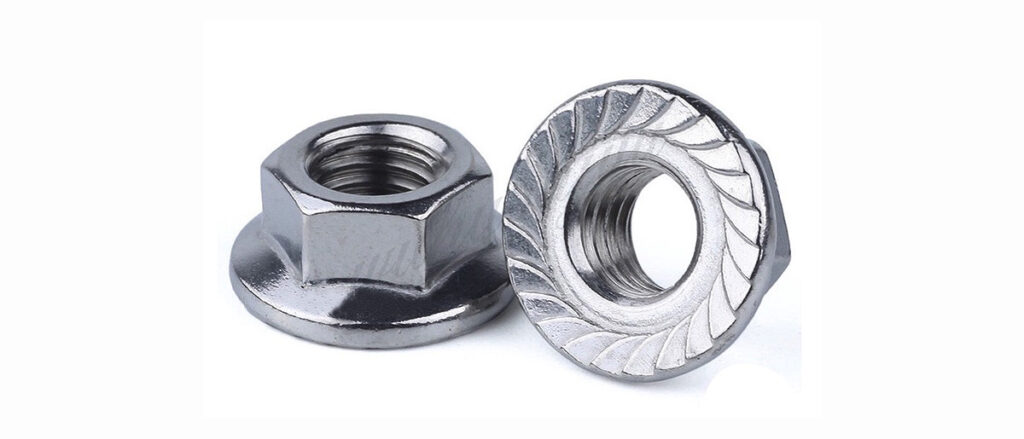

Metric DIN 6923 Hexagon Flange Nuts have a circular washer like flange shaped base that increases the weight bearing surface area to distribute the load over a greater area when tightened. The flange eliminates the need to use a washer with the nut. DIN 6923 Hexagon Flange Nuts are available with or without serrations. The serrations function to act as a locking mechanism to reduce loosening due to vibrational forces. BRK Industries offers the following sizes for immediate delivery from stock: Diameters ranging from M3 to M16 available in A2 and marine grade A4 stainless steel. View available parts by clicking on the following link: Hexagon Flange Nuts DIN 6923

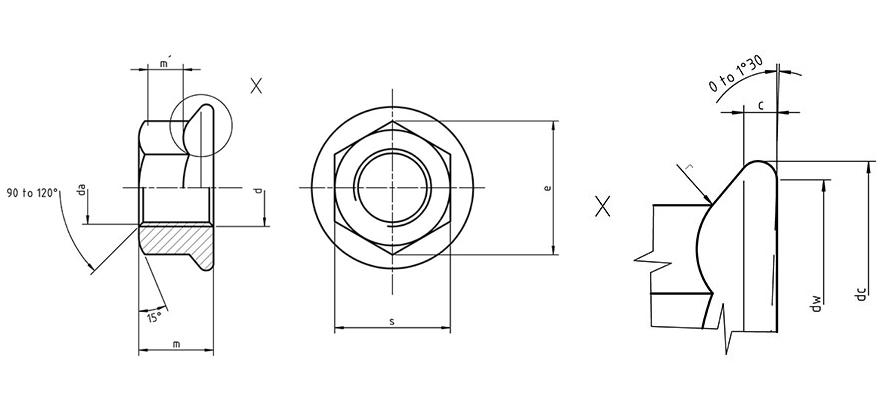

Technical Specification for DIN 6923 Hexagon Nuts with Flange
| Thread size d | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
| – | – | M8x1 | M10x1,25 | M12x1,5 | M14x1,5 | M16x1,5 | M20x1,5 | ||
| – | – | – | (M10x1) | (M12x1,5) | – | – | – | ||
| P | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2 | 2,5 | |
| c | min. | 1 | 1,1 | 1,2 | 1,5 | 1,8 | 2,1 | 2,4 | 3 |
| da | min. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| max. | 5,75 | 6,75 | 8,75 | 10,8 | 13 | 15,1 | 17,3 | 21,6 | |
| dc | max. | 11,8 | 14,2 | 17,9 | 21,8 | 26 | 29,9 | 34,5 | 42,8 |
| dw | min. | 9,8 | 12,2 | 15,8 | 19,6 | 23,8 | 27,6 | 31,9 | 39,9 |
| e | min. | 8,79 | 11,05 | 14,38 | 16,64 | 20,03 | 23,36 | 26,75 | 32,95 |
| m | max. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| min. | 4,7 | 5,7 | 7,6 | 9,6 | 11,6 | 13,3 | 15,3 | 18,9 | |
| m´ | min. | 2,2 | 3,1 | 4,5 | 5,5 | 6,7 | 7,8 | 9 | 11,1 |
| s | nominal=max. | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
| min. | 7,78 | 9,78 | 12,73 | 14,73 | 17,73 | 20,67 | 23,67 | 29,67 | |
| r | max. | 0,3 | 0,36 | 0,48 | 0,6 | 0,72 | 0,88 | 0,96 | 1,2 |
