DIN 976
Metric Thread Stud Bolts
Equivalent Standard: ISO 7412
Metric DIN 976 Fully Threaded Stud Bolts are headless bolts threaded all the way from one end to the other (full / all thread). They are designed for a nut to be applied on both ends and are often used for electrical, construction and plumbing for hanging purposes. BRK Industries offers one of the most complete ranges of metric studs and other inch and metric industrial fasteners for immediate delivery from stock. The following sizes of metric DIN 976 Fully Threaded Stud Bolts are available for immediate shipping from stock: Diameters ranging from M2 to M52 and lengths to 1000mm in A2 and marine grade A4 stainless steel. View parts by clicking on the following link: Stud Bolts DIN 976.
- DIN 976 Metric Thread Stud Bolts
- Material Grade: 4.8, 5.8, 8.8, 10.9, 12.9
- Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
- Thread: METRIC

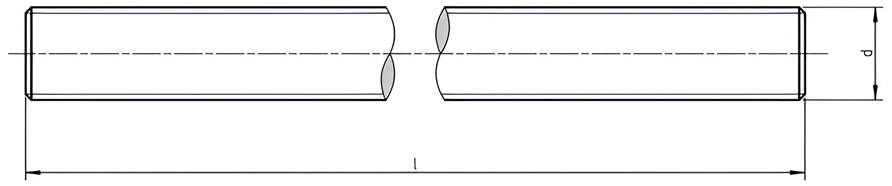

Technical Specification for DIN 976 Metric Thread Stud Bolts
| d | P | L (mm) | Weight kg/1000pcs |
| M2 | 0,4 | 1000 | 18,7 |
| M2,5 | 0,45 | 1000 | 30 |
| M3 | 0,5 | 1000 | 44 |
| M3,5 | 0,6 | 1000 | 60 |
| M4 | 0,7 | 1000 | 78 |
| M5 | 0,8 | 1000 | 124 |
| M6 | 1 | 1000 | 177 |
| M8 | 1 / 1,25 | 1000 | 319 |
| M10 | 1 / 1,25 / 1,75 | 1000 | 500 |
| M12 | 1,5 / 2 | 1000 | 725 |
| M14 | 1,5 / 2 | 1000 | 970 |
| M16 | 1,5 / 2 | 1000 | 1330 |
| M18 | 1,5 / 2,5 | 1000 | 1650 |
| M20 | 1,5 /2,5 | 1000 | 2080 |
| M22 | 1,5 /2,5 | 1000 | 2540 |
| M24 | 2 / 3 | 1000 | 3000 |
| M27 | 2 / 3 | 1000 | 3850 |
| M30 | 2 / 3,5 | 1000 | 4750 |
| M33 | 2 / 3,5 | 1000 | 5900 |
| M36 | 3 / 4 | 1000 | 6900 |
| M39 | 3 / 4 | 1000 | 8200 |
| M42 | 3 / 4,5 | 1000 | 9400 |
| M45 | 3 / 4,5 | 1000 | 11000 |
| M48 | 3 / 5 | 1000 | 12400 |
| M52 | 3 / 5 | 1000 | 14700 |
