Pole Line Hardware & Fasteners
Pole line Fasteners refers to the extensive range of Bolts like Carriage Bolts, Double Arming Bolt, Eye Bolt, Machine Bolts, Square Bolt, Square Nuts, Washer Nuts, Plain Washer, Square Washer, Square curved Washer etc. used to build, support, and secure overhead electrical power Pole lines, ensuring conductors are safely attached to poles while maintaining tension and insulation for reliable power distribution.
BRK Manufactures durable Tower line Fasteners fittings that are vital for grid stability, safety, and efficiency designed to withstand harsh environmental conditions. At BRK we Export our Pole Line Fasteners to Europe as well as to US States like Idaho, Texas, Ohio, California, Colorado, New Jersey, Philadelphia, Utah & Many more. We manufacture our Pole Line Fasteners in 5.6, 8.8 & 10.9 Grades. BRK Tower line fasteners are coated with hot dip galvanization, Zinc Plating, Dacromet 320 & Geomet 321 Coating.
What is Pole Line Hardware? (Technical Definition & Grid Function)
Pole Line Hardware refers to the specialized high-strength fasteners and fittings—such as Carriage Bolts, Double Arming Bolts, Oval Eye Bolts, Machine Bolts, Square Nuts, and Curved Washers—used to build, support, and secure overhead electrical power distribution and transmission lines. They attach conductors to poles while maintaining mechanical tension and electrical insulation under extreme wind, ice, and thermal loads.
Locks crossarms and brackets rigidly to poles under continuous wind-induced vortex shedding and line tension.
Minimum 65 to 100 μm (>500 g/m²) zinc bath creating metallurgical alloy layer for 30+ year maintenance-free life.
Manufactured in Grades 5.6 (500 MPa), 8.8 (800 MPa), 10.9 (1040 MPa), ASTM A325, and ASTM A394.
Direct shipments to US utility contractors (Idaho, Texas, Ohio, California, Colorado, Utah) & European grids.
Pole Line Hardware & Tower Fasteners Catalog (14 Items)
Engineered to ANSI C135, ASTM A325, ASTM A394, IS 5369, and DIN specifications. Every item features full material traceability with EN 10204 Type 3.1 Mill Test Certificates.
Carriage Bolts
Round head square neck bolts used to fasten wooden crossarms and steel fittings to utility poles. The square neck locks firmly into the wood preventing the bolt from turning when the nut is tightened.
Double Arming Bolts & Rods
Fully threaded or double-ended rods fitted with cone points for easy nut starting. Used for securing double crossarms across utility power poles, providing superior lateral strength against high wind loads.
Oval Eye Bolt
Forged oval eye bolts designed for dead-ending guy wires, attaching suspension insulators, and securing span guys to transmission poles without wire damage or excessive radius bending.

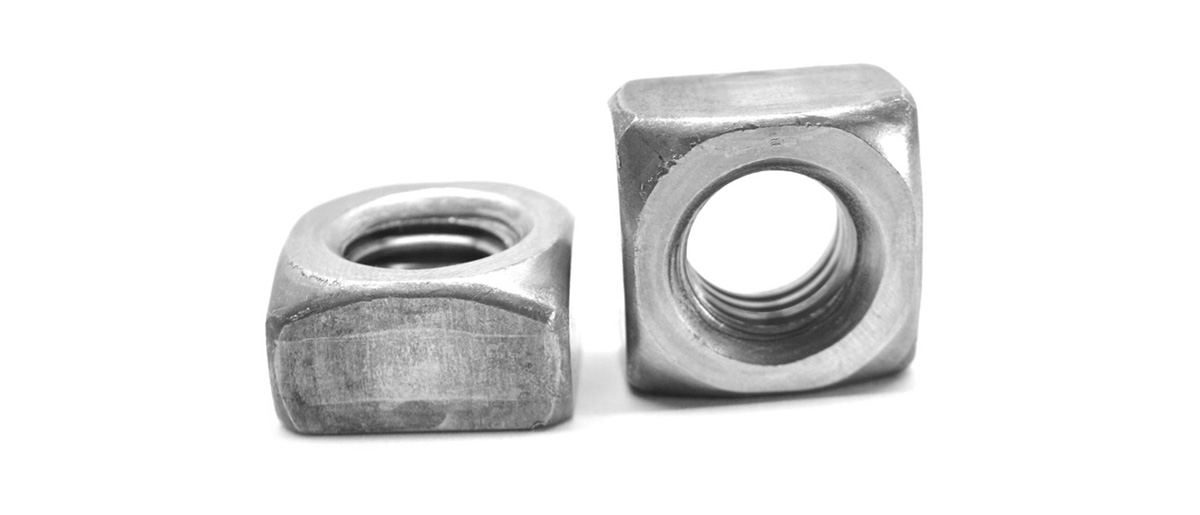

Regular & Heavy Square Nuts
Heavy-duty square nuts offering larger bearing area and high wrench grip for wooden utility poles and transmission crossarms, tapped oversize after hot dip galvanizing per ASTM A563.
Round Washers (IS 5369)
Heavy plain circular washers manufactured as per IS 5369 and DIN 125, providing smooth load distribution and preventing surface embedment on crossarm assemblies.
Washer Nuts (Flange Nuts)
Integrated one-piece washer and hex nut design per DIN 6923, eliminating separate washers during high-altitude transmission tower erection. Serrated base prevents joint loosening.
Square Washers
Large flat square washers designed for timber pole construction to distribute high clamping loads across wood crossarms without crushing timber fibers or sinking in.
Square Curved Washer
Curved profile square washers engineered to fit the cylindrical curvature of wooden and composite utility poles, preventing point-loading and timber cracking during through-bolting.
Hex Head Machine Bolt
Standard heavy hex machine bolts with cone points for crossarm mounting and structural transformer bracket installation. High-tensile rolled threads provide high shear strength.

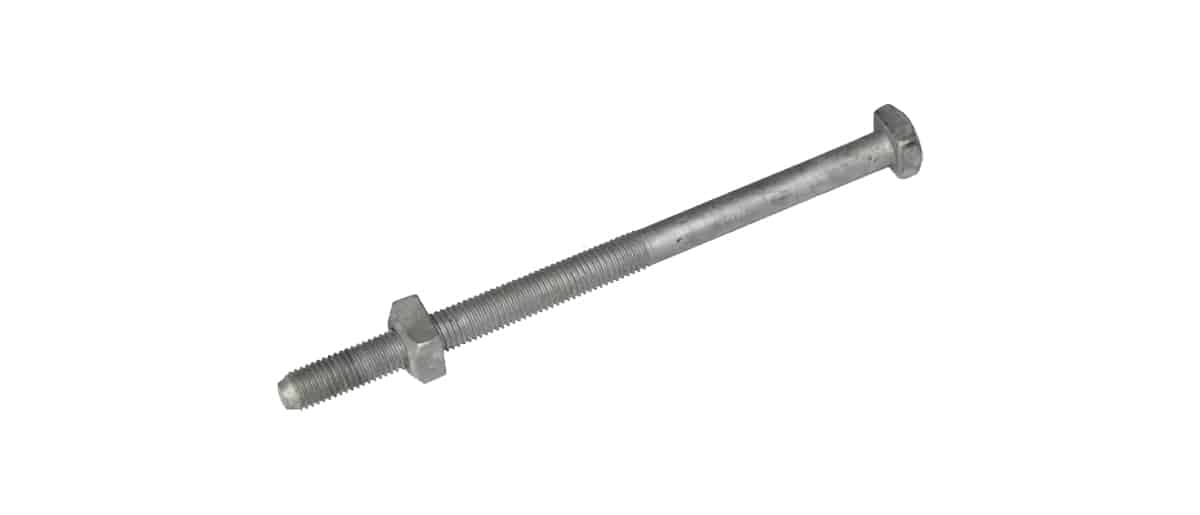

Square Head Machine Bolts
Traditional square head bolts providing secure wrench retention for utility lineman and electrical tower installation, preventing rotational spin when working at elevated heights.
Washer Head Bolts
Flanged washer head bolts engineered for rapid installation on transmission brackets without separate washers, distributing high pre-load torque across bracket slots.
A325 Structural Bolts
Heavy hex structural bolts manufactured in accordance with ASTM A325 / ASTM F3125 specifications for high-load steel transmission towers and substation steel structures.
Plates & Braces
Galvanized steel pole plates, crossarm braces, and yoke plates for power distribution overhead lines. Fabricated with precision punched clearance holes per engineering drawings.
Bent Bolts & Anchor Bolts
L-shaped, J-shaped, and U-shaped anchor bolts embedded in concrete foundations for tubular steel poles, lighting masts, and electrical substation equipment anchorage.
Pole Line Hardware Dimensions & Tightening Torque Chart
Complete technical parameters for heavy utility bolts, square nuts, and washers. All threads are rolled UNC or metric coarse class 2A/2B fit.
| Nominal Bolt Size | Thread Pitch (TPI / mm) | Across Flats (s) | Head Height (k) | Tensile Stress Area (sq in / mm²) | Min. Tensile Load Gr 5.6 (lbs) | Min. Tensile Load Gr 8.8 (lbs) | Recommended Torque Gr 8.8 (ft-lb) |
|---|---|---|---|---|---|---|---|
| 3/8" (M10) | 16 TPI / 1.5mm | 9/16" (14.2mm) | 15/64" (6.0mm) | 0.0775 sq in | 4,650 lbs | 9,300 lbs | 30 ft-lb |
| 1/2" (M12) | 13 TPI / 1.75mm | 3/4" (19.0mm) | 5/16" (7.9mm) | 0.1419 sq in | 8,500 lbs | 17,000 lbs | 75 ft-lb |
| 5/8" (M16) * Standard Utility | 11 TPI / 2.0mm | 15/16" (23.8mm) | 25/64" (9.9mm) | 0.2260 sq in | 13,550 lbs | 27,100 lbs | 150 ft-lb |
| 3/4" (M20) * Standard Utility | 10 TPI / 2.5mm | 1-1/8" (28.6mm) | 15/32" (11.9mm) | 0.3340 sq in | 20,050 lbs | 40,100 lbs | 260 ft-lb |
| 7/8" (M22) | 9 TPI / 2.5mm | 1-5/16" (33.3mm) | 35/64" (13.9mm) | 0.4620 sq in | 27,700 lbs | 55,450 lbs | 430 ft-lb |
| 1" (M24) | 8 TPI / 3.0mm | 1-1/2" (38.1mm) | 39/64" (15.5mm) | 0.6060 sq in | 36,350 lbs | 72,700 lbs | 640 ft-lb |
| 1-1/4" (M30) | 7 TPI / 3.5mm | 1-7/8" (47.6mm) | 25/32" (19.8mm) | 0.9690 sq in | 58,150 lbs | 116,300 lbs | 1,120 ft-lb |
| 1-1/2" (M36) | 6 TPI / 4.0mm | 2-1/4" (57.1mm) | 15/16" (23.8mm) | 1.4050 sq in | 84,300 lbs | 168,600 lbs | 1,940 ft-lb |
Mechanical Property Classes Comparison Table
| Property Class | Nominal Tensile (MPa) | Yield Strength (MPa) | Min. Elongation | Hardness Range | Standard Reference | Typical Utility Application |
|---|---|---|---|---|---|---|
| Grade 5.6 | 500 MPa (72.5 ksi) | 300 MPa | 20% | 130 - 220 HB | ISO 898-1 / IS 1367 | Timber utility poles, standard carriage bolts, low-stress braces |
| Grade 8.8 | 800 - 830 MPa (120 ksi) | 640 MPa | 12% | 22 - 32 HRC | ISO 898-1 / DIN 267 | High-tension power line crossarms, heavy machine bolts, transformer brackets |
| Grade 10.9 | 1040 MPa (150 ksi) | 940 MPa | 9% | 32 - 39 HRC | ISO 898-1 | Critical lattice transmission tower connections, high-wind and seismic zones |
| ASTM A325 | 830 MPa (120 ksi) | 635 MPa | 14% | 25 - 34 HRC | ASTM F3125 / A325 | Heavy structural steel transmission towers, substation frames (North America) |
| ASTM A394 | 510 / 830 MPa | 260 / 585 MPa | 18% / 14% | 70-95 HRB / 25-34 HRC | ASTM A394 (Tower Bolts) | Transmission tower step bolts, tower erection bolts with integral locknuts |
Protective Coatings Comparison (ASTM A153, Geomet, Dacromet)
| Coating Specification | Application Method | Governing Standard | Layer Thickness | Salt Spray Life (ASTM B117) | Engineered Benefit |
|---|---|---|---|---|---|
| Hot-Dip Galvanizing (HDG) | Molten zinc bath immersion at 450°C forming metallurgical zinc-iron alloy | ASTM A153, ISO 1461 | 65 - 100 μm (>500 g/m²) | 1,000+ Hours | Industry standard for 30+ year outdoor utility service; cathodic self-healing protection. |
| Geomet 321 Zinc Flake | Non-electrolytic dip-spin application of micro-layer zinc & aluminum baked at 300°C | ISO 10683, ASTM F3393 | 8 - 15 μm | 1,500+ Hours | Zero risk of hydrogen embrittlement for high-tensile 10.9 bolts; ultra-thin thread clearance. |
| Dacromet 320 | Zinc and aluminum chromate dispersion coating with bimetallic compatibility | EN ISO 10683 | 5 - 12 μm | 1,000+ Hours | Excellent galvanic corrosion barrier against aluminum conductors and brackets. |
| Electro Zinc Plating (Cr3) | Electrolytic passivation with trivalent chromium seal (Clear / Yellow / Blue) | ISO 4042, ASTM B633 | 8 - 25 μm | 120 - 360 Hours | Uniform thread dimensional control for indoor electrical switchboards & light hardware. |
Supplying Utilities Across North America & Europe
At BRK, we regularly export containerized consignments of transmission and pole line hardware directly from our Ludhiana, Punjab manufacturing works to major regional hubs, electrical cooperatives, and EPC power contractors.
Active export shipments to power distribution authorities and line contractors across:
CE Certified EN 15048 and ISO 9001:2015 compliant bulk deliveries across:
In-House Quality Laboratory Testing
Every heat batch is tested and serialized before export packaging.
25kg polyethylene moisture-proof bags, heavy duty corrugated cartons, steel strapped on ISPM-15 fumigated heat-treated wooden pallets with full stretch-wrap protection.
Frequently Asked Questions
Technical answers addressing common queries from utility engineers, line contractors, and procurement managers.
What is Pole Line Hardware and what is it used for? ↓
Pole line Fasteners refers to the extensive range of Bolts like Carriage Bolts, Double Arming Bolt, Eye Bolt, Machine Bolts, Square Bolt, Square Nuts, Washer Nuts, Plain Washer, Square Washer, Square curved Washer etc. used to build, support, and secure overhead electrical power Pole lines, ensuring conductors are safely attached to poles while maintaining tension and insulation for reliable power distribution.
What steel grades does BRK manufacture for pole line fasteners? ↓
BRK Industries manufactures pole line hardware in Property Class 5.6, 8.8, and 10.9 in accordance with ISO 898-1 and IS 1367, as well as ASTM A325 heavy structural bolts and ASTM A394 transmission tower bolts. We use certified raw materials sourced directly from prime steel mills with complete chemical and mechanical traceability.
What anti-corrosion protective coatings are available for tower line hardware? ↓
To withstand severe outdoor environmental exposure, BRK offers Hot-Dip Galvanization (HDG as per ASTM A153 / ASTM F2329 / ISO 1461 with minimum 65 to 100 microns zinc thickness), Trivalent Electro Zinc Plating (Cr3 Clear / Yellow / Blue), Dacromet 320, and Geomet 321 non-electrolytic zinc flake coatings for high-tensile 10.9 fasteners requiring zero hydrogen embrittlement.
Which regions and US states does BRK export pole line hardware to? ↓
BRK exports utility-grade fasteners globally, with major shipments to the European Union, the United Kingdom, and numerous US states including Idaho, Texas, Ohio, California, Colorado, New Jersey, Pennsylvania (Philadelphia), and Utah. Consignments are packaged on heat-treated ISPM-15 wooden pallets.
Why are square nuts and square curved washers preferred on wooden utility poles? ↓
Square nuts provide a wide bearing surface and positive wrench engagement that prevents spinning during line tensioning, allowing linemen wearing heavy insulated safety gloves to tighten fasteners without slippage. Square curved washers match the radial contour of wooden poles, distributing clamping force evenly across the wood perimeter and preventing fiber crushing or localized moisture trapping that causes timber rot.
Does BRK provide mill test certificates (MTC) with pole line shipments? ↓
Yes, every export batch includes EN 10204 Type 3.1 Mill Test Certificates (MTC) documenting chemical analysis, tensile strength, yield load, elongation, and coating thickness test results.
