DIN 912
Hex Socket Cap Screwdin
Equivalent Standard: ISO 4762 | UNI 5931
Metric DIN 912 hexagon socket head cap screws are cylindrical head screws with an internal hexagonal drive suited for a hex / Allen key or wrench. The internal drive is ideal for situations where externally wrenched screws are impractical such as in applications where limited space is available BRK Industries offers an extensive range of metric DIN 912 hexagon socket head cap screws as well other inch and metric industrial fasteners for immediate delivery from stock. The following sizes of metric DIN 912 hexagon socket head cap screws are available for immediate shipping from stock: Diameters ranging from M1.6 to M48, in coarse and fine thread in lengths up to 320mm, in steel and stainless steel A2 and A4. View parts by clicking
on the following link: Hexagon Socket Head Cap Screws DIN 912.
- DIN 912 Hex Socket Cap Screwdin
- Material Grade: 8.8, 10.9, 12.9
- Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
- Thread: METRIC

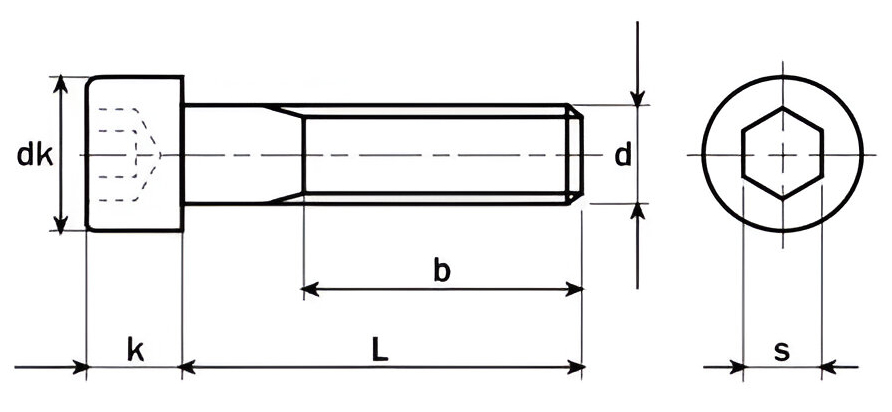

Technical Specification for DIN 912 Hex Socket Cap Screwdin
| Nom. Dia. (d) | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | ||||||||
| Thread Pitch | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | ||||||||
| Thread Length (b) | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | ||||||||
| dk | Max. | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 33 | |||||||
| K | Max. | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | |||||||
| s | Nominal | 6 | 8 | 10 | 12 | 14 | 14 | 17 | 17 | |||||||
| L | WEIGHT IN KG/1000 PCS | |||||||||||||||
| 12 | 10.90 | |||||||||||||||
| 16 | 12.10 | 20.90 | ||||||||||||||
| 20 | 13.40 | 22.90 | 32.10 | |||||||||||||
| 25 | 15.00 | 25.40 | 35.70 | 48.00 | 71.30 | |||||||||||
| 30 | 16.90 | 27.90 | 39.30 | 53.00 | 77.80 | 111.00 | 128.00 | |||||||||
| 35 | 18.90 | 30.40 | 42.90 | 58.00 | 84.40 | 120.00 | 139.00 | 211.00 | ||||||||
| 40 | 20.90 | 32.90 | 46.50 | 63.00 | 91.00 | 129.00 | 150.00 | 224.00 | ||||||||
| 45 | 22.90 | 36.10 | 50.10 | 68.00 | 97.60 | 138.00 | 161.00 | 237.00 | ||||||||
| 50 | 24.90 | 39.30 | 54.50 | 73.00 | 106.00 | 147.00 | 172.00 | 250.00 | ||||||||
| 55 | 26.90 | 42.50 | 58.90 | 78.00 | 114.00 | 156.00 | 183.00 | 263.00 | ||||||||
| 60 | 28.90 | 45.70 | 63.40 | 84.00 | 122.00 | 165.00 | 194.00 | 276.00 | ||||||||
| 65 | 31.00 | 48.90 | 67.80 | 90.00 | 130.00 | 174.00 | 205.00 | 291.00 | ||||||||
| 70 | 33.00 | 52.10 | 71.30 | 96.00 | 138.00 | 183.00 | 216.00 | 306.00 | ||||||||
| 80 | 37.00 | 58.50 | 80.20 | 108.00 | 154.00 | 203.00 | 241.00 | 336.00 | ||||||||
| 90 | 64.90 | 89.10 | 120.00 | 170.00 | 243.00 | 266.00 | 366.00 | |||||||||
| 100 | 71.20 | 98.00 | 132.00 | 186.00 | 263.00 | 291.00 | 396.00 | |||||||||
| 110 | 107.0 | 144.00 | 202.00 | 283.00 | 316.00 | 426.00 | ||||||||||
| 120 | 116.0 | 156.00 | 218.00 | 303.00 | 341.00 | 456.00 | ||||||||||
| 130 | 168.00 | 234.00 | 323.00 | 366.00 | 486.00 | |||||||||||
| 140 | 180.00 | 250.00 | 343.00 | 391.00 | 516.00 | |||||||||||
| 150 | 266.00 | 353.00 | 416.00 | 546.00 | ||||||||||||
| 160 | 282.00 | 403.00 | 441.00 | 576.00 | ||||||||||||
| 180 | 491.00 | 636.00 | ||||||||||||||
| 200 | 541.00 | 696.00 | ||||||||||||||
| 220 | 756.00 | |||||||||||||||
| Nom. Dia. (d) | M24 | M27 | M30 | M33 | M36 | M42 | M48 | M56 | ||||||||
| Thread Pitch | 3 | 3 | 3.5 | 3.5 | 4 | 4.5 | 5 | 6.5 | ||||||||
| Thread Length (b) | 60 | 66 | 72 | 78 | 84 | 96 | 108 | 124 | ||||||||
| dk | Max. | 36 | 40 | 45 | 50 | 54 | 63 | 72 | 84 | |||||||
| K | Max. | 24 | 27 | 30 | 33 | 36 | 42 | 48 | 56 | |||||||
| s | Nominal | 19 | 19 | 22 | 24 | 27 | 32 | 36 | 41 | |||||||
| L | WEIGHT IN KG/1000 PCS | |||||||||||||||
| 40 | 270.00 | |||||||||||||||
| 45 | 285.00 | 330.00 | 500.00 | |||||||||||||
| 50 | 300.00 | 352.00 | 527.00 | 630.00 | ||||||||||||
| 55 | 316.00 | 374.00 | 554.00 | 665.00 | 870.00 | |||||||||||
| 60 | 330.00 | 395.00 | 531.00 | 700.00 | 910.00 | 1370.0 | ||||||||||
| 65 | 345.00 | 418.00 | 608.00 | 735.00 | 950.00 | 1420.0 | ||||||||||
| 70 | 363.00 | 440.00 | 635.00 | 770.00 | 990.00 | 1470.0 | 2040.0 | |||||||||
| 80 | 399.00 | 484.00 | 690.00 | 830.00 | 1070.0 | 1580.0 | 2180.0 | |||||||||
| 90 | 435.00 | 529.00 | 745.00 | 900.00 | 1150.0 | 1680.0 | 2320.0 | |||||||||
| 100 | 471.00 | 574.00 | 800.00 | 970.00 | 1230.0 | 1790.0 | 2460.0 | |||||||||
| 110 | 507.00 | 619.00 | 855.00 | 1040.0 | 1310.0 | 1890.0 | 2600.0 | |||||||||
| 120 | 543.00 | 664.00 | 910.00 | 1110.0 | 1390.0 | 2000.0 | 2740.0 | |||||||||
| 130 | 579.00 | 709.00 | 965.00 | 1180.0 | 1470.0 | 2100.0 | 2880.0 | |||||||||
| 140 | 615.00 | 754.00 | 1020.0 | 1250.0 | 1550.0 | 2210.0 | 3020.0 | |||||||||
| 150 | 651.00 | 799.00 | 1080.0 | 1320.0 | 1630.0 | 2320.0 | 3160.0 | |||||||||
| 160 | 687.00 | 844.00 | 1130.0 | 1390.0 | 1710.0 | 2420.0 | 3300.0 | 4880.0 | ||||||||
| 180 | 759.00 | 934.00 | 1240.0 | 1530.0 | 1870.0 | 2640.0 | 3590.0 | 5270.0 | ||||||||
| 200 | 831.00 | 1020.0 | 1350.0 | 1670.0 | 2030.0 | 2860.0 | 3870.0 | 5650.0 | ||||||||
| 220 | 903.00 | 1110.0 | 1460.0 | 1810.0 | 2190.0 | 3080.0 | 4150.0 | 6040.0 | ||||||||
| 240 | 975.00 | 1230.0 | 1570.0 | 1950.0 | 2250.0 | 3300.0 | 4430.0 | 6420.0 | ||||||||
| 260 | 1340.0 | 1680.0 | 2040.0 | 2410.0 | 3520.0 | 4710.0 | 6810.0 | |||||||||
| 280 | 1790.0 | 2180.0 | 2570.0 | 3740.0 | 4990.0 | 7200.0 | ||||||||||
| 300 | 1900.0 | 2320.0 | 2730.0 | 3960.0 | 5270.0 | 7580.0 | ||||||||||
