Plain Washer (DIN 125)

Equivalent Standard: ISO 7089 | UNI 6592

High hardness and low deformation plain washers, punched washers, and flat washers from BRK Industries can be used as a spacer or a load distributor. The washers are designed for environmental protection. Washers from BRK Industries also provide abrasion resistance and corrosion prevention. With good electrical and thermal conductivity, our washers can be used in sheet metal work, plumbing, auto body construction and repair, and other electrical applications.

For long-lasting durability, the washers are made with high-quality steel, brass, and other materials. The washers come in large diameters for specific applications requiring a good amount of surface load reduction. Plain washers also provide insulation against heat and electricity and prevent the threaded material from taking the heat. Our flat and punched washers are mostly used to spread the load over a wide surface and act as a barrier between the fastener and surface when the hole is larger than the nut.

  • DIN 125
  • Quality: 200-250HV & 300-400 HV
  • Coating: HOT DIP GALV., ZINC PLATED, DACROMET, GEOMET, BLACK
  • Thread: METRIC
PLAIN WASHER/FLATWASHER

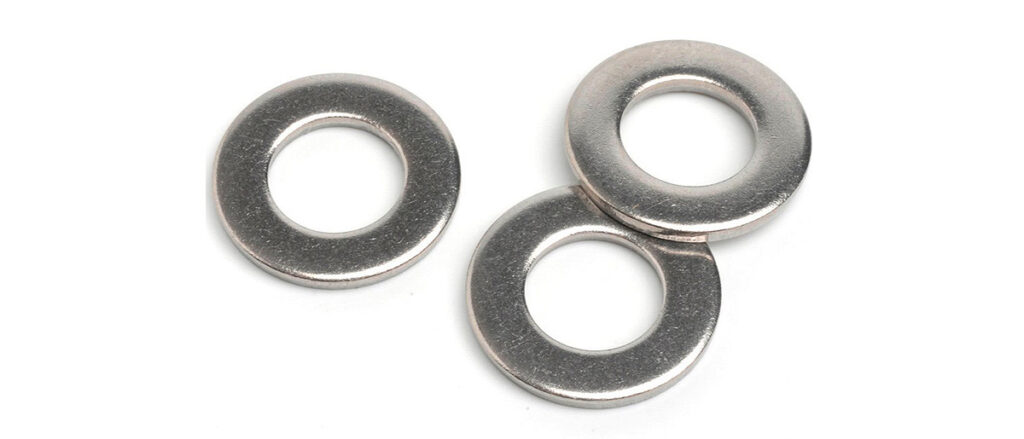

Plain Washer/Flat Washer DIN 125

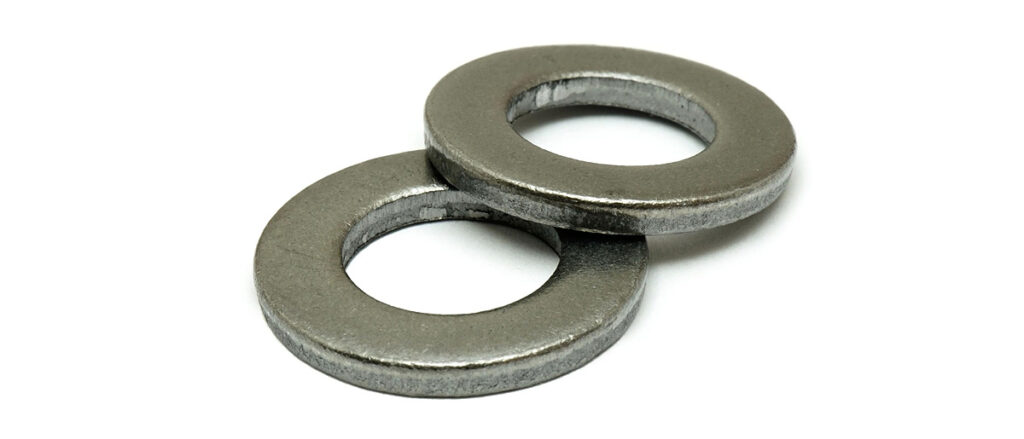

Plain Washer/Flat Washer DIN 125

DIN 125

Metric DIN 125 Flat Washers are standard metric flat washers – a circular metal disc with a central hole. Typically used to distribute the load over a larger bearing surface either positioned below the head of a bolt or below the nut. This even distribution over a larger area reduces the chance of damaging the bearing surface. A washer could also be used if the outer diameter of a mating nut is smaller than the hole through which the screw is placed. BRK Industries offers over 500,000 unique fastener products from stock in inch and metric standard in a variety of materials and finishes. The following sizes of DIN 125 Flat Washers are available for immediate shipping from stock: Diameters ranging from M3 to M72 in aluminum, brass, nylon, steel as well as stainless steel A2 and A4. View parts by clicking on the following link: Flat Washers DIN 125.

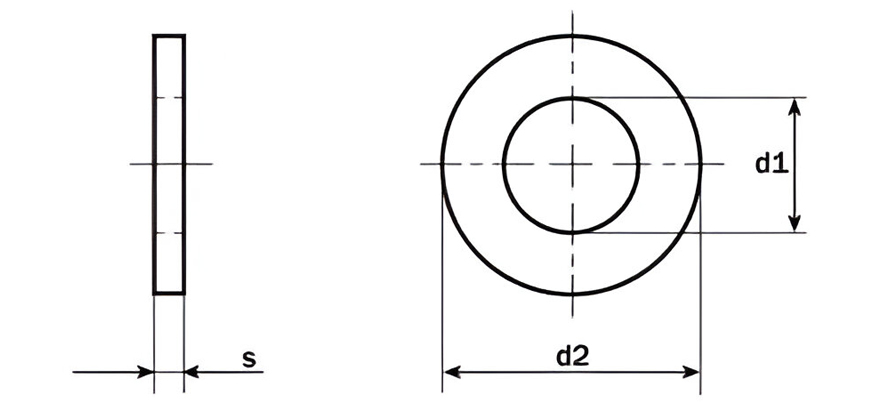

Technical Specification for DIN 125 Plain Washer

d Nom.M3M4M5M6M7M8M10M12M14
d13.24.35.36.47.48.410.51315
d27910121416202428
s0.50.811.61.61.622.52.5
KG/1000 PCS0.1190.3080.4431.0201.3901.8303.5706.2708.600

d Nom.M16M18M20M22M24M27M30M33M36
d1171921232528313436
d2303437394450566066
s333344455
KG/1000 PCS11.3014.7017.2018.4032.3043.7053.6075.3092.10

d Nom.M39M42M45M48M52M56M60M64
d14043465054586266
d27278859298105110115
s67788999
KG/1000 PCS133183220294330425458492
