Flat Washer (DIN 126)

Equivalent Standard: ISO 7091 | UNI 6593

Round flat washers DIN 126 is an essential element in many industrial and construction applications. Available in various standards such as DIN and PN, and various materials including BRASS, COPPER, ALUMINUM and POLYAMIDE. Coating with electroplated zinc [ZN], thermo-diffusion zinc [TZN] or hot-dip zinc [HDG] provides protection against corrosion. Select the appropriate strength class such as 140HV, 200HV, 300HV, A2, A4, A5 to match the pads to your needs. Discover our wide range of pads in the Pads category and protect your structures solidly and permanently.

  • DIN 126
  • Quality: 100 HV
  • Coating: Self, Black, Bright Zinc, Hot Dip Galvanized
  • Thread: METRIC
Flat-Washer-(DIN-126)
Flat-Washer-(DIN-126)
Flat-Washer-(DIN-126)

DIN 126

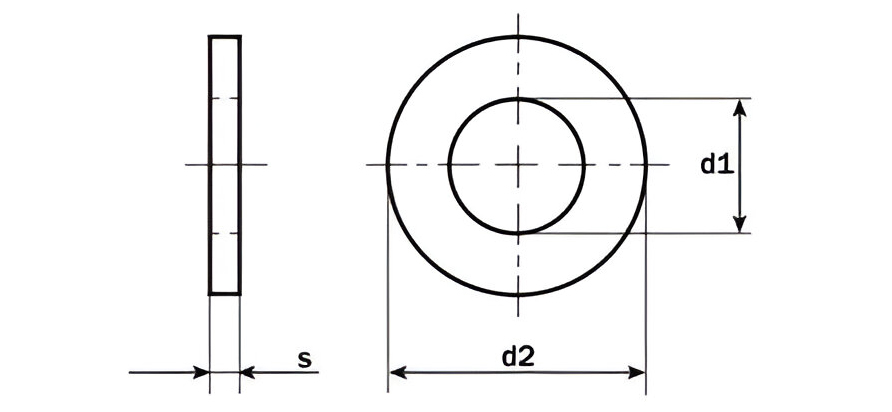

Technical Specification for DIN 126 Flat Washer

D Nom.M5M6M8M10M12M14M16M18M20
d15.56.691113.515.517.52022
d2101216202428303437
s11.61.622.52.5333
KG/1000 PCS0.4300.9911.7303.4406.0708.38011.001416.40

D Nom.M22M24M27M30
d124263033
d239445056
s3444
KG/1000 PCS17.5031.1039.5050.50
