Threaded Bars Manufacturer
Equivalent Standard: ASTM A193/A307, ISO 898-1
Threaded Bars Manufacturer in 10.9, 8.8, 5.6 Grades in India.
Threaded bars are long threaded Rod, threaded along the entire lenght thus offers maximum Flexibility for cut to size to adjust nut position as required. Threaded Bars are versatile fasteners used in construction, automotive, and industrial applications. As a Trusted Threaded Bar Manufacturer, we specialize in producing high-precision threaded bars that offer exceptional strength, durability, and corrosion resistance.
BRK Threaded Bars are available in:
Steel Threaded Bars ( A2 304 & A4 316)
High Tensile Threaded Bar (8.8, 10.9, 12.9 Grades)
Galvanized Threaded Bars ( Hot Dip & Electro Plated)
Metric Threaded Bar (12 mm to 900 mm)
Size: M4 to M48, 1 mtr, 2, 3 mts length.
BRK Threaded Bars are used in automotive, motorsport, industrial machinery, architectural finish work, agriculture, food processing, clean energy & Marine industry.
For Marine application (salt water) We use A4 / 316 Stainless Steel material for Threaded Bars.
- DIN 976
- Class: 4.6, 4.8, 8.8, 10.9 & A2
- Finish: Bright ZINC Plated, Hot Dip Galvanization
- Thread: LEFT, METRIC, WHITWORTH
- Length: 1,2 & 3 METERS

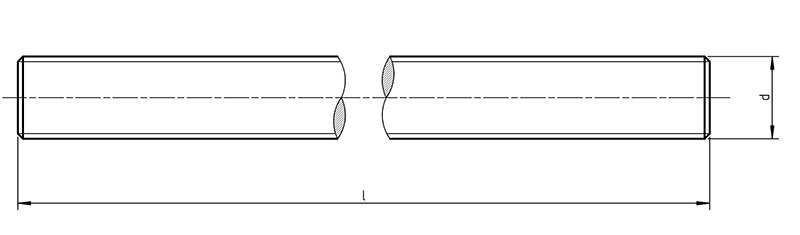

DIN 976-1
Fully Threaded Bars Metric DIN 976 ( previously DIN 975) are headless long bolts threaded all the way from one end to the other (full/all thread). They are designed for a nut to be applied on both ends.
Threaded Bars can be used in a wide array of applications across various industries:
Construction: They are extensively used for anchoring in concrete, stabilizing foundations, and securing structural elements.
Plumbing and HVAC: Used for hanging pipes, ductwork, and equipment from ceilings.
Automotive: Employed in engine and exhaust system components.
Manufacturing and Machinery: Used for assembling and securing parts of machines.
Furniture Making: Can be used for joinery and creating adjustable components.
Marine: Stainless steel Threaded Bars are crucial for applications exposed to saltwater.
Technical Specification for DIN 976 Threaded Bars
| d | P | L (mm) | Weight kg/1000pcs |
| M2 | 0,4 | 1000 | 18,7 |
| M2,5 | 0,45 | 1000 | 30 |
| M3 | 0,5 | 1000 | 44 |
| M3,5 | 0,6 | 1000 | 60 |
| M4 | 0,7 | 1000 | 78 |
| M5 | 0,8 | 1000 | 124 |
| M6 | 1 | 1000 | 177 |
| M8 | 1 / 1,25 | 1000 | 319 |
| M10 | 1 / 1,25 / 1,75 | 1000 | 500 |
| M12 | 1,5 / 2 | 1000 | 725 |
| M14 | 1,5 / 2 | 1000 | 970 |
| M16 | 1,5 / 2 | 1000 | 1330 |
| M18 | 1,5 / 2,5 | 1000 | 1650 |
| M20 | 1,5 /2,5 | 1000 | 2080 |
| M22 | 1,5 /2,5 | 1000 | 2540 |
| M24 | 2 / 3 | 1000 | 3000 |
| M27 | 2 / 3 | 1000 | 3850 |
| M30 | 2 / 3,5 | 1000 | 4750 |
| M33 | 2 / 3,5 | 1000 | 5900 |
| M36 | 3 / 4 | 1000 | 6900 |
| M39 | 3 / 4 | 1000 | 8200 |
| M42 | 3 / 4,5 | 1000 | 9400 |
| M45 | 3 / 4,5 | 1000 | 11000 |
| M48 | 3 / 5 | 1000 | 12400 |
| M52 | 3 / 5 | 1000 | 14700 |
