Prevailing Torque Type Nylon High (DIN 982)

Equivalent Standard: ISO 7040 | UNI 7473

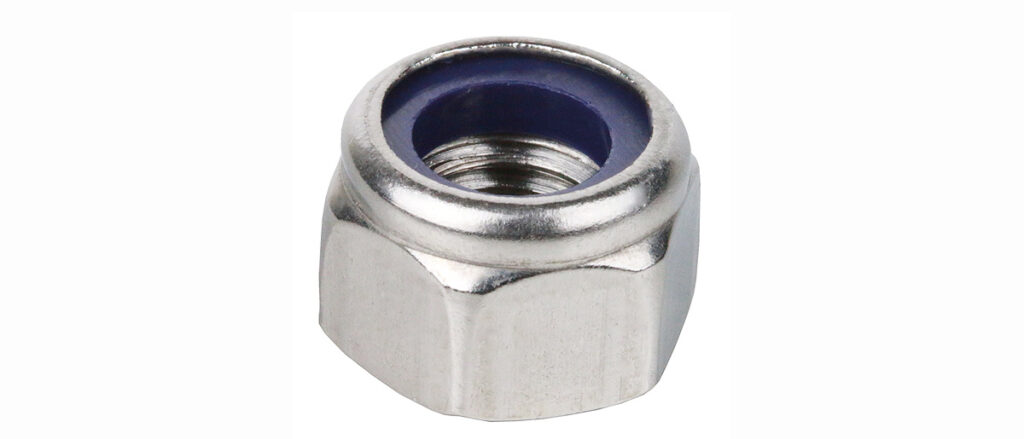

Prevailing torque type nut manufactured to DIN 982. Hexagon nut incorporating a nylon insert to help prevent loosening when fitted. This is the higher profile (Type P) variant with more available thread engagement and is typically fitted with a spanner or ratchet with socket. A lower profile, where perhaps space is at a premium is also available under DIN 985 (Type T).
  • DIN 982
  • Class: 5, 6, 8, 10
  • Finish: BZP
  • Thread: METRIC
Prevailing-Torque-Nuts-with-Nonmetalic-Insert-DIN-982
Prevailing-Torque-Nuts-with-Nonmetalic-Insert-(DIN-982)
Prevailing-Torque-Nuts-with-Nonmetalic-Insert-(DIN-982)

DIN 982

Metric DIN 982 nylon insert lock nuts are prevailing torque type lock nuts which have a permanent undersized non metallic insert (nylon/polyamide) that produces friction between threads of mated components thereby increasing the resistance to loosening forces. DIN 982 is similar in dimensions to DIN 985 except that the total height of DIN 982 nuts a greater. Nylon insert lock nuts may be re-used a limited number of times because the threads of the mating bolt deform but do not cut into the polymer insert. These nuts are considered one-way lock nuts because they can only be installed one-way—top up. The nylon insert limits the use at elevated temperatures or when exposed to certain chemicals. BRK Industries offers one of the most complete ranges of metric studs and other inch and metric industrial fasteners for immediate delivery from stock. The following sizes of metric DIN 985 nylon insert lock nuts are available for immediate shipping from stock: Diameters ranging from M4 to M24 in A2 and marine grade A4 stainless steel as well as brass and steel.

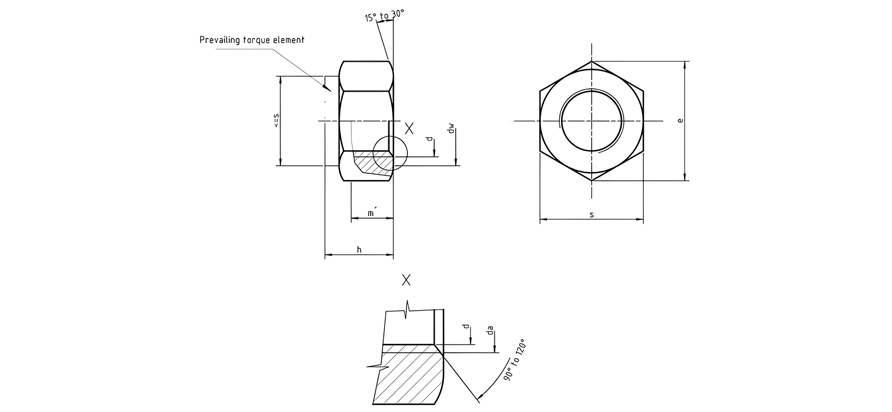

Technical Specification for DIN 982 Prevailing Torque Type Nylon High

Thread size dM5M6M7M8M10M12M14M16M18M20M22M24
M8x1M10x1M12x1,5M14x1,5M16x1,5M18x2M20x2M22x2M24x2
M10x1,25M12x1,25M18x1,5M20x2M22x2
P0,8111,251,51,75222,52,52,53
damin.56781012141618202224
max.5,756,757,758,7510,81315,117,319,521,623,725,9
dwmin.6,98,99,611,615,617,420,522,524,927,729,533,2
emin.8,7911,0512,1214,3818,921,124,4926,7529,5632,9535,0329,55
hmax. = nominal size6,388,59,511,514161820222528
min.67,78,29,1411,1413,6415,317,319,1620,723,726,7
mmin.4,44,96,146,448,0410,3712,114,115,116,918,120,2
min.3,523,924,915,156,438,39,6811,2812,0813,5214,4816,16
smax. = nominal size81011131719222427303236
min.7,789,7810,7312,7316,7319,6721,6723,6726,1629,163135
Weight (7,85 kg/dm3) kg/1000pcs1,43,13,2611,716,62137,851,66886127
