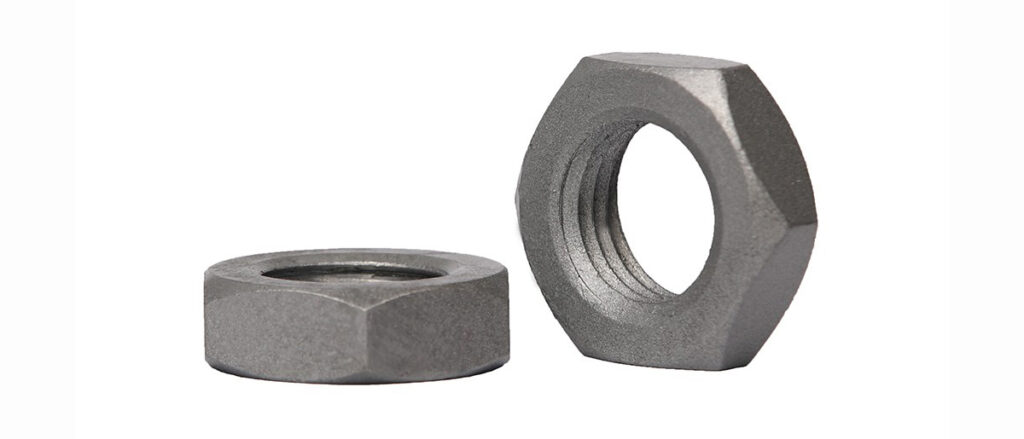

Lock Nuts (DIN 936)
Equivalent Standard: ISO 4035 | UNI 5589 | EU 24035
The DIN 936 Hex Thin Nuts that we supply to the market have high tensile strength and also have good abrasion and oxidation-resistant properties. These characteristics make them suitable when conditions are tough, and the equipment is heavily used. Our nuts are available in different sizes and are made from different materials to suit the client’s needs in industrial applications. The dimensions of hex thin nuts according to DIN 936 are given in detail so that proper nuts can be selected for the respective project.
- DIN 936
- Class: 4, 5, 6, 8, 10
- Finish: BZP, HOT DIP GALV
DIN 936

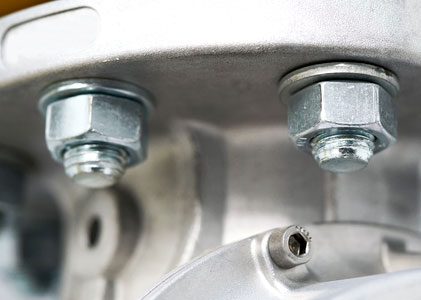

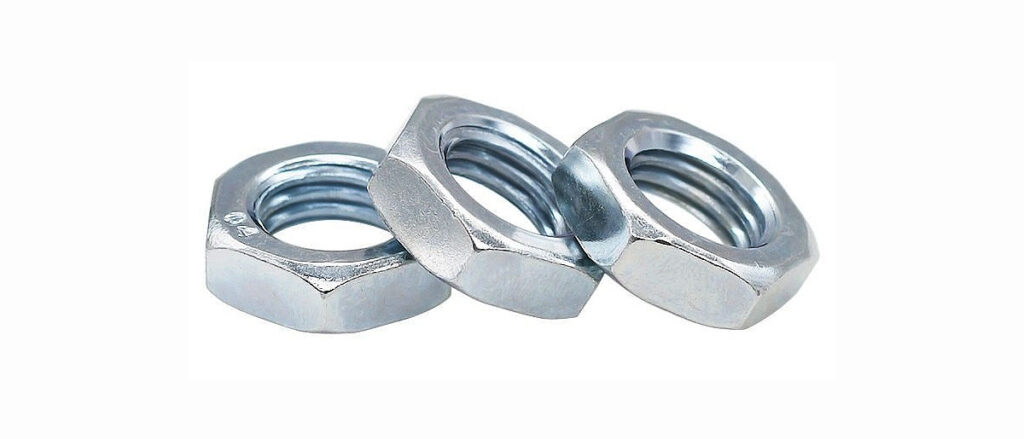

Metric DIN 936 Low Profile Hex Nuts are similar to a hex jam nut (DIN 439) but with slightly different heights. They are thin hex nuts about half as thick as a regular hex nut. They are often used as lock nuts, where they are threaded up against a standard nut locking it in place or in any circumstance where a standard nut is too thick for an application, a hex jam nut can be a very useful alternative. BRK Industries offers the following sizes for immediate delivery from stock: M8 to M42 in both A2 and marine grade stainless steel as well as brass and steel zinc in right hand and left had threads. BRK Industries offers over 500,000 unique fastener products from stock in inch and metric standard in a variety of materials and finishes. The following sizes of metric DIN 936 Low Profile Hex Nuts are available for immediate shipping from stock: Diameters ranging from M2 to M60 in steel and A2 and marine grade A4 stainless steel.
Technical Specification for DIN 936 Lock Nuts
| Thread d | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | |
| M8x1 | M10x1 | M12x1,25 | M14x1,5 | M16x1,5 | M18x1,5 | M20x1,5 | M22x1,5 | M24x1,5 | ||
| – | M10x1,25 | M12x1,5 | – | – | M18x2 | M20x2 | M22x2 | M24x2 | ||
| P | 1,25 | 1 | 1,75 | 2 | 2 | 2,5 | 2,5 | 2,5 | 3 | |
| da | min. | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| max | 8,75 | 10,8 | 13 | 15,1 | 17,3 | 19,5 | 21,6 | 23,7 | 25,9 | |
| dw | min. | 11,3 | 15,3 | 17,2 | 20,2 | 22,2 | 25,3 | 28,2 | 29,5 | 33,2 |
| e | min. | 14,38 | 18,9 | 21,1 | 24,49 | 26,75 | 29,56 | 32,95 | 35,03 | 39,55 |
| m | nominal=max. | 5 | 6 | 7 | 8 | 8 | 9 | 9 | 10 | 10 |
| min. | 4,7 | 5,7 | 6,64 | 7,42 | 7,42 | 8,42 | 8,1 | 9,1 | 9,1 | |
| m´ | min. | 3,8 | 4,6 | 5,3 | 5,9 | 5,9 | 6,7 | 6,5 | 7,3 | 7,3 |
| s | nominal=max. | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 |
| min. | 12,73 | 16,73 | 18,67 | 21,67 | 23,67 | 26,16 | 29,16 | 31 | 35 | |
| Weight (7,85 kg/dm3) kg/1000pcs | 4 | 8,6 | 12,1 | 18,2 | 20,1 | 29,6 | 36,3 | 43,8 | 58 | |
| Thread d | M27 | M30 | M33 | M36 | M39 | M42 | (M45) | M48 | M52 | |
| M27x1,5 | M30x1,5 | M33x1,5 | M36x1,5 | M39x1,5 | M42x1,5 | M45x1,5 | M48x1,5 | M52x1,5 | ||
| M27x2 | M30x2 | M33x2 | M36x2 | M39x2 | M42x2 | M45x2 | M48x2 | M52x2 | ||
| – | – | – | M36x3 | M39x3 | M42x3 | M45x3 | M48x3 | M52x3 | ||
| P | 3 | 3,5 | 3,5 | 4 | 4 | 4,5 | 4,5 | 5 | 5 | |
| da | min. | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 |
| max | 29,1 | 32,4 | 35,6 | 38,9 | 42,1 | 45,4 | 48,6 | 51,8 | 56,2 | |
| dw | min. | 38 | 42,7 | 46,6 | 51,1 | 55,9 | 60,6 | 64,7 | 69,4 | 74,2 |
| e | min. | 45,2 | 50,85 | 55,37 | 60,79 | 66,44 | 71,3 | 76,95 | 82,6 | 88,25 |
| m | nominal=max. | 12 | 12 | 14 | 14 | 16 | 16 | 18 | 18 | 20 |
| min. | 10,9 | 10,9 | 12,9 | 12,9 | 14,9 | 14,9 | 16,9 | 16,9 | 18,7 | |
| m´ | min. | 8,7 | 8,7 | 10,3 | 10,3 | 11,9 | 11,9 | 13,5 | 13,5 | 15 |
| s | nominal=max. | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| min. | 40 | 45 | 49 | 53,8 | 58,8 | 63,1 | 68,1 | 73,1 | 78,1 | |
| Weight (7,85 kg/dm3) kg/1000pcs | 90 | 110 | 155 | 190 | 260 | 307 | 400 | 460 | 580 | |
