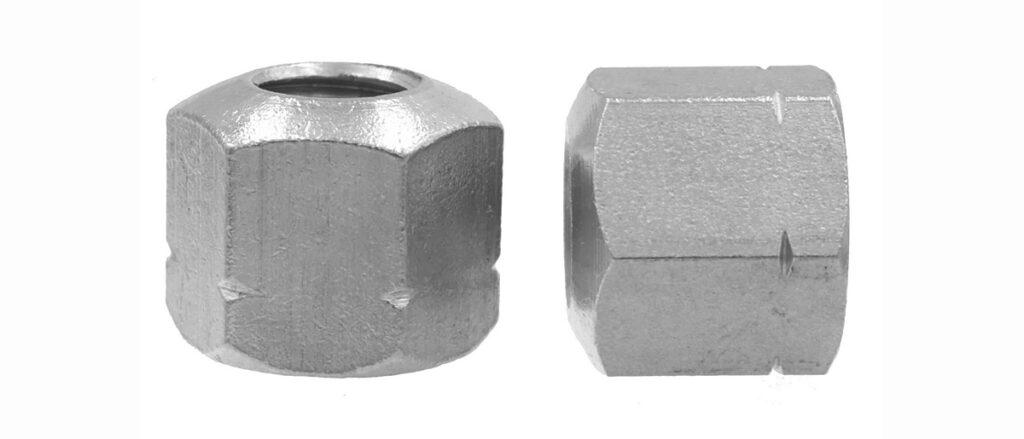

Hexagon Nuts A-Type V-Bolt (DIN 6330)
Metric DIN 6330 Hex Nut are hex nuts that are thicker than standard metric hex nuts. DIN 6330 metric hex nuts have a height of 1.5 x the diameter. Also one of the faces is rounded matching DIN 6319 conical seats which in certain assemblies can compensate for uneven surfaces.
- DIN 6330
- Class: C.10, C.6
- Coating: BICRO, CINC, PAVON, SIN BANO
- Thread: FINA, METRICA, SAE-UNF, WHITWORTH
DIN 6330
Metric DIN 6330 Hexagon Nuts are hex nuts that are thicker than standard metric hex nuts. DIN 6330 metric hex nuts have a height of 1.5 x the diameter. Also one of the faces is rounded matching DIN 6319 conical seats which in certain assemblies can compensate for uneven surfaces. BRK Industries offers the following sizes for immediate delivery from stock: Diameters ranging from M6 to M36 available in A2 and marine grade A4 stainless steel. View available parts by clicking on the following link: Hexagon Nuts DIN 6330
Technical Specification for DIN 6330 Hexagon Nuts A-Type V-Bolt
| d | d1 | da | e | m | r | s |
Approx. Mass (7,85 kg/dm3) per 1000 units, in kg | |
| h14 | max. | min. | js15 | Limit deviatios | ||||
| M6 | 7 | 7 | 11,05 | 9 | 9 | 10 | h13 | 5 |
| M8 | 9 | 9 | 14,38 | 12 | 11 | 13 | h13 | 9,6 |
| M10 | 11,5 | 11 | 17,77 | 15 | 15 | 16 | h13 | 21 |
| M12 | 14 | 13 | 20,03 | 18 | 17 | 18 | h13 | 31,5 |
| M16 | 18 | 17 | 26,75 | 24 | 22 | 24 | h13 | 61 |
| M20 | 22 | 21 | 33,53 | 30 | 27 | 30 | h13 | 120 |
| M24 | 26 | 25 | 39,98 | 36 | 32 | 36 | h14 | 206 |
| M30 | 32 | 31 | 51,28 | 45 | 41 | 46 | h14 | 419 |
| M36 | 38 | 37 | 61,31 | 54 | 50 | 55 | h14 | 715 |
| M42 | 44 | 43 | 72,61 | 63 | 58 | 65 | h14 | 1170 |
| M48 | 52 | 50 | 83,91 | 72 | 67 | 75 | h14 | 1800 |
