DIN 444-B Eye Bolts Manufacturer
Equivalent Standard: UNI 6058

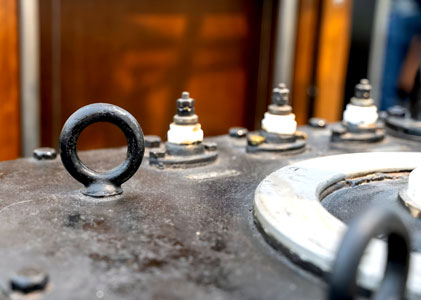

DIN 444 Eye Bolts have an eye (loop/ring) at one end and a threaded shank at the other. They are threaded into a pre-tapped hole or secured with a nut to a structure so that a rope or cable can be attached to the loop end.
BRK manufacture high-quality DIN 444-B Eye Bolts Fasteners to export in US, UK, South America, Mexico, Germany, Poland, France, Spain, Greece, Denmark, Austria, Portugal, Finland, Czech Republic, Sweden, Australia, Netherlands, Italy, Canada, Brazil, Argentina, Colombia, Cuba, Peru, Chile, Costa Rica. We have a wide range of Eye Bolts, with ready stock for export and supply. We take orders and manufacture as per the customer’s requirements. engineering industries.
- Standard: DIN 444-B
- Material Grade: 4.8, 8.8, 10.9
- Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
- Thread: METRIC
DIN 444-B

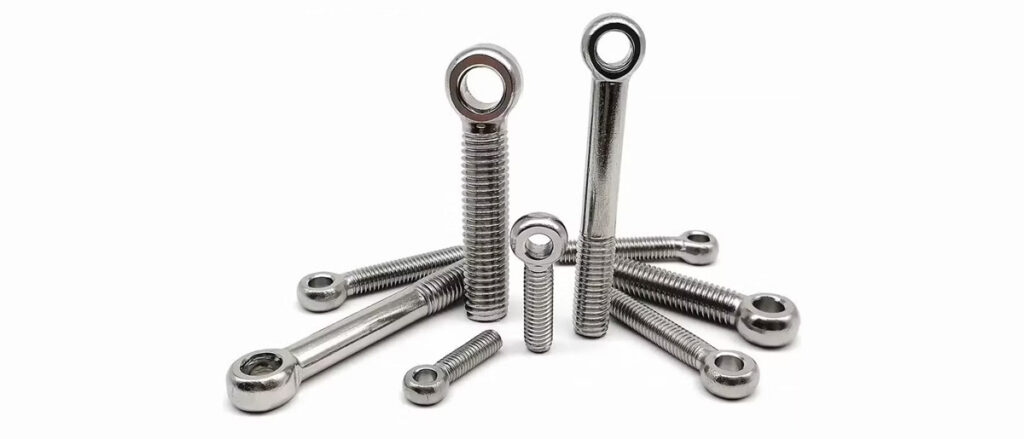

Metric DIN 444 Eye Bolts are bolts with an hole type eye at one end and a threaded shank at the other. They are threaded into a pre-tapped hole or secured with a nut to a structure so that a rope or cable can be attached to the loop end. Only eye bolts with shoulders should be used to support angular loads. BRK Industries offers one of the most complete ranges of DIn 444-B Eye bolts and other industrial fasteners for immediate delivery from our Ready stock. Sizes available of metric DIN 444 Eye Bolts for immediate shipping ranging from M6 to M39 with lengths up to 300 mm made of A2 and marine grade A4 stainless steel. DIN 444.
Technical Specification for DIN 444-B Eye Bolts
| Nom. Dia. (d) | M6 | M8 | M10 | M12 | M16 | M20 | |
| Thread Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | |
| b | 1 | 18 | 22 | 26 | 30 | 38 | 46 |
| 2 | – | 28 | 32 | 36 | 44 | 52 | |
| 3 | – | – | – | 49 | 57 | 65 | |
| d2 | H9 | 6 | 8 | 10 | 12 | 16 | 18 |
| d3 | Max. | 14 | 18 | 20 | 25 | 32 | 40 |
| s | Max. | 7 | 9 | 12 | 14 | 17 | 22 |
| L | WEIGHT IN KG/1000 PCS | ||||||
| 40 | 13.70 | 25.00 | |||||
| 50 | 15.90 | 28.90 | 39.10 | ||||
| 60 | 18.10 | 32.80 | 45.30 | 71.40 | |||
| 70 | 20.30 | 36.80 | 51.50 | 80.30 | 149 | ||
| 80 | 22.60 | 40.70 | 57.60 | 89.20 | 164 | ||
| 90 | 23.70 | 44.70 | 63.80 | 98.10 | 180 | ||
| 100 | 48.60 | 70.00 | 106 | 196 | 334 | ||
| 110 | 52.60 | 76.10 | 115 | 212 | 359 | ||
| 120 | 56.50 | 82.30 | 124 | 228 | 383 | ||
| 130 | 60.50 | 88.40 | 133 | 244 | 408 | ||
| 140 | 64.40 | 94.50 | 142 | 259 | 433 | ||
| 150 | 101.00 | 151 | 275 | 457 | |||
| 160 | 160 | 291 | 482 | ||||
| 180 | 178 | 322 | 531 | ||||
| 200 | 195 | 354 | 581 | ||||
| 220 | 211 | 383 | 624 | ||||
| 240 | 229 | 414 | 674 | ||||
| 260 | 247 | 446 | 723 | ||||
| Nom. Dia. (d) | M24 | M27 | M30 | M33 | M36 | M39 | |
| Thread Pitch | 3 | 3 | 3.5 | 3.5 | 4 | 4 | |
| b | 1 | 54 | 60 | 66 | – | – | – |
| 2 | 60 | 66 | 72 | 78 | 84 | 90 | |
| 3 | 73 | 79 | 85 | 91 | 97 | 103 | |
| d2 | H9 | 22 | 25 | 28 | 30 | 32 | 35 |
| d3 | Max. | 45 | 50 | 55 | 60 | 65 | 70 |
| s | Max. | 25 | 27 | 30 | 34 | 38 | 41 |
| L | WEIGHT IN KG/1000 PCS | ||||||
| 100 | 454 | ||||||
| 110 | 489 | ||||||
| 120 | 524 | 618 | |||||
| 130 | 560 | 663 | |||||
| 140 | 596 | 708 | |||||
| 150 | 631 | 753 | 997 | 1240 | |||
| 160 | 667 | 798 | 1050 | 1310 | 1570 | 1880 | |
| 180 | 738 | 888 | 1160 | 1440 | 1730 | 2070 | |
| 200 | 809 | 978 | 1270 | 1570 | 1890 | 2250 | |
| 220 | 868 | 1060 | 1370 | 1690 | 2050 | 2420 | |
| 240 | 939 | 1140 | 1480 | 1820 | 2200 | 2610 | |
| 260 | 1010 | 1230 | 1590 | 1960 | 2350 | 2790 | |
| 280 | 1320 | 1700 | 2100 | 2500 | 2970 | ||
| 300 | 1400 | 1810 | 2240 | 2650 | 3100 | ||
