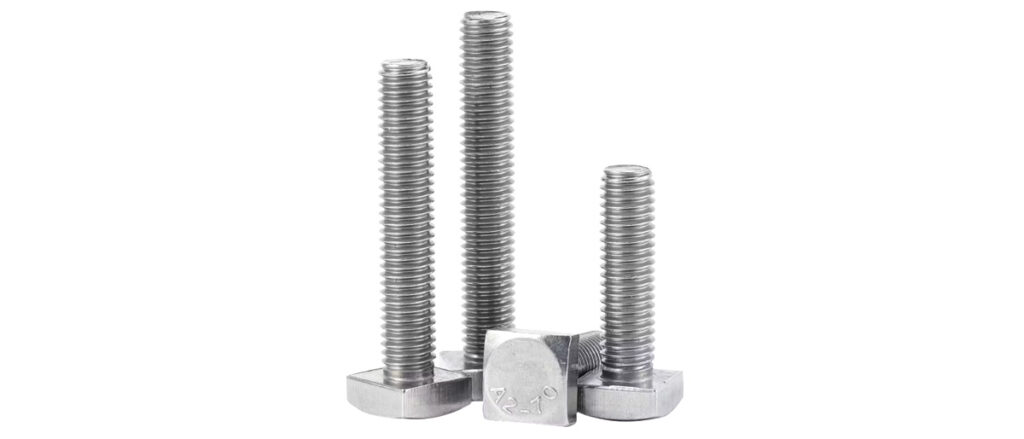

Holding Down Bolt BS 7419
Equivalent Standard: UNI 6104

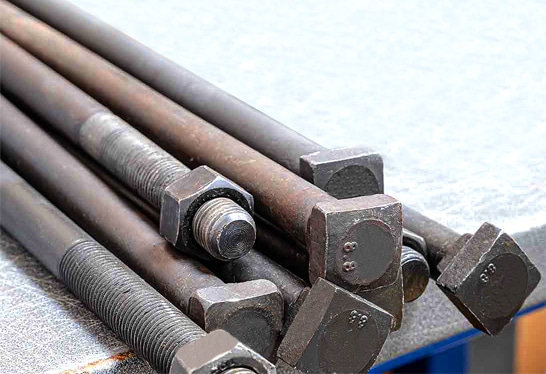

Holding Down Bolt BS 7419 (also known as an anchor bolt or foundation bolt) is a heavy-duty Square Head Bolt used to fasten steel structures, machinery, or equipment to concrete foundations. Holding Down bolts are the fundamental component in anchoring machinery, structures, columns, bridges & Other Heavy Equipment to Concrete foundations ensuring the stability and safe transfer of loads from a steel frame to its base.
Sizes :
Diameters range from M16 to M72
Lengths up to 6,000 mm.
Materials & Finish:
Made from carbon steel or stainless Steel ( Grade 4.6 Mild Steel, 8.8 High Tensile).
Surface Finishes:
Hot Dip galvanization, Zinc Plating, Self Black, or other corrosion-resistant treatments.
Thread: Metric
Holding Down Bolt Applications
- Primary Use: Securing steel columns, machinery, and heavy equipment to concrete foundations.
-
Installation Notes:
Embedded in concrete during pouring, with threaded ends exposed for structural attachment.
Accessories like wedge plates or extenders may be used for alignment.
BS 7419
BS 7419 is a British Standard for Holding Down Bolt with Square Head also known as Foundation Bolt (Anchor Bolt). Holding down bolts are primarily industrial fasteners, used for anchoring large machinery, structures & Other Heavy Equipment to Concrete foundations. Their primary function is to prevent movement and ensure stability to the components primarily to anchor structural steelwork to concrete foundations.
It provides guidelines and specifications for the design, materials, and performance of Holding Down Bolt, ensuring their reliability and safety. BS 7419 bolts provide robust anchoring for critical structures, with flexibility in sizes, grades, and finishes. These Holding down Bolt are manufactured using High Grades steel of 4.6 8.8 & 10.9. BRK Holding Down Bolt is available in Hot dip galvanization, Zink Plating, Black Annealing, Zinc Plating Etc. Beside BS 7419, BRK also Manufactures Other Hot Dip galvanized fasteners like BS EN 15048, EN 14399-1 Etc.
| Feature | Description |
|---|---|
| Material | Carbon steel or Stainless steel |
| Grades | Often Grade 4.6, 8.8 (depending on load requirements) |
| Finish | Self Black, galvanized, Zinc Plating or epoxy-coated depending on corrosion exposure |
| Threading | ISO metric threads (typically partial threading) |
| Washer Plates | Square or rectangular steel plates welded to the embedded end for Types A & D |
Application of BS 7419 Holding Down Bolt
Structural steel columns and base plates.
Machinery and equipment foundations.
Light poles and signboards.
Pre-engineered buildings (PEBs).
Wind turbine towers Bridge bearings.
Technical Specification for Holding Down Foundation Bolts (BS 7419)
| Nom. Dia. (d) | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | ||
| Thread Pitch | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | ||
| t | a | Max. | 122.0 | 127.5 | 133.0 | 140.5 | 148.0 | 155.5 | 163.0 | 172.5 | 182.0 |
| Min. | 116 | 120 | 124 | 130 | 136 | 142 | 148 | 156 | 164 | ||
| b | Max. | 225 | 225 | 225 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Min. | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||
| ds | Max. | 16.70 | 20.84 | 24.84 | 30.84 | 37.00 | 43.00 | 49.00 | 57.20 | 65.20 | |
| Min. | 15.30 | 19.16 | 23.16 | 29.16 | 35.00 | 41.00 | 47.00 | 54.80 | 62.80 | ||
| h | Max. | 10.75 | 13.40 | 15.90 | 19.75 | 23.55 | 27.05 | 31.05 | 36.25 | 41.25 | |
| Min. | 9.25 | 11.60 | 14.10 | 17.65 | 21.45 | 24.95 | 28.95 | 33.75 | 38.75 | ||
| r | Min. | 0.6 | 0.8 | 0.8 | 1.0 | 1.0 | 1.2 | 1.6 | 2.0 | 2.0 | |
| af | Max. | 24.00 | 30.00 | 36.00 | 46.00 | 55.00 | 65.00 | 75.00 | 85.00 | 95.00 | |
| Min. | 23.16 | 29.16 | 35.00 | 45.00 | 53.80 | 63.10 | 73.10 | 82.80 | 92.80 | ||
| s | Max. | 8.75 | 10.75 | 12.90 | 15.90 | 18.90 | 22.05 | 25.05 | 29.05 | 33.25 | |
| Min. | 7.25 | 9.25 | 11.10 | 14.10 | 17.10 | 19.95 | 22.95 | 26.95 | 30.75 | ||
| sq | Max. | 16.70 | 20.84 | 24.84 | 30.84 | 37.00 | 43.00 | 49.00 | 57.20 | 65.20 | |
| Min. | 15.30 | 19.16 | 23.16 | 29.16 | 35.00 | 41.00 | 47.00 | 54.80 | 62.80 | ||
| Length | WEIGHT IN KG PER PC | ||||||||||
| 300 | 0.53 | 0.85 | |||||||||
| 375 | 0.64 | 1.03 | 1.51 | ||||||||
| 450 | 0.76 | 1.22 | 1.78 | 2.90 | 4.22 | * | * | * | * | ||
| 525 | 0.88 | 1.43 | 2.04 | 3.35 | 4.82 | * | * | * | * | ||
| 600 | 1.00 | 1.58 | 2.31 | 3.77 | 5.42 | * | * | * | * | ||
| 750 | 1.95 | 2.84 | 4.60 | 6.62 | * | * | * | * | |||
| 1000 | 2.00 | 3.72 | 5.95 | 8.62 | * | * | * | * | |||
| 1250 | 4.61 | 7.34 | 10.62 | * | * | * | * | ||||
