DIN 558
Eye Bolts
Equivalent Standard: ISO 4018 | EU 24018
Metric DIN 558 Fully Threaded Hexagon Screws/bolts have threads running the full length of the shaft, from the face side under the head to the tip. Fully threaded screws and bolts are used frequently in assemblies where grip strength is a critical feature as there are more threads and surface area in contact with the assembled parts. Typically a fully threaded bolt is tightened into a fully threaded hole of the assembled parts Since the bolt is fully threaded, the grip is exerted along the full length of the bolt. Once fully tightened the resulting holding pressure at the head where it meets the assembly is significant and strongly resists loosening. BRK Industries offers over 500,000 unique fastener products from stock in inch and metric standard in a variety of materials and finishes. The following sizes DIN 558 Fully Threaded Hexagon Screws/Bolts are available for immediate shipping from stock: Diameters ranging from M3 to M48 up to 300mm long in stainless steel A2 and A4. View parts by clicking on the following link: Fully Threaded Hexagon Screws DIN 558.
- DIN 558 Hexagon Set Screws
- Material Grade: 4.8
- Finish: Self, Black, Bright Zinc, Hot Dip Galvanized
- Thread: METRIC

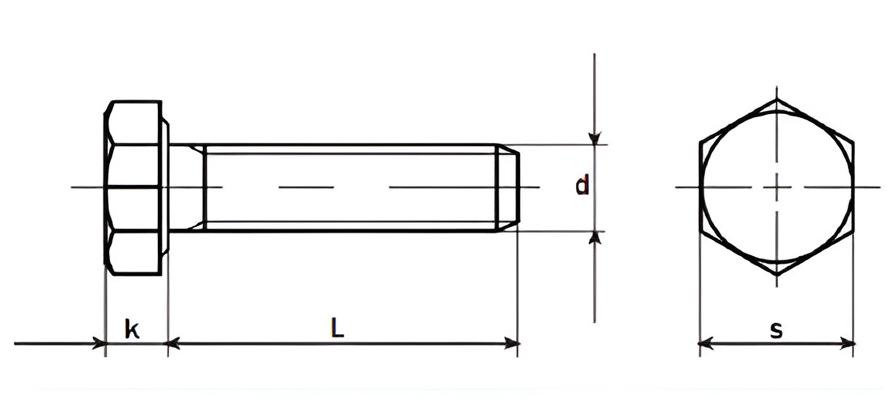

Technical Specification for DIN 558 Hexagon Set Screws
| Nom. Dia. (d) | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | (M 18) | M 20 | |
| Thread Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | |
| K | Nominal | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 |
| Min. | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.28 | 12.28 | |
| Max. | 4.15 | 5.45 | 6.56 | 7.68 | 8.98 | 10.18 | 11.72 | 12.72 | |
| s | Max. | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 |
| Min. | 9.78 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.67 | 29.67 | |
| L | WEIGHT IN KG/1000 PCS | ||||||||
| 10 | 4.08 | 9.10 | 16.20 | 23.30 | 38.00 | ||||
| 12 | 4.42 | 9.80 | 17.20 | 25.00 | 40.00 | 52.90 | |||
| 14 | 4.76 | 10.50 | 18.20 | 26.40 | 42.00 | 55.60 | |||
| 16 | 5.11 | 11.10 | 19.20 | 27.70 | 44.00 | 58.30 | 82.00 | 105.0 | |
| 18 | 5.45 | 11.70 | 20.20 | 29.10 | 46.00 | 60.90 | 84.90 | 110.0 | |
| 20 | 5.80 | 12.30 | 21.20 | 31.00 | 48.00 | 63.50 | 87.20 | 114.0 | |
| 22 | 6.15 | 12.90 | 22.20 | 33.00 | 50.00 | 66.20 | 92.20 | 119.0 | |
| 25 | 6.65 | 13.90 | 23.70 | 34.10 | 53.00 | 70.20 | 95.80 | 124.0 | |
| 28 | 7.15 | 14.90 | 25.20 | 36.20 | 55.90 | 74.20 | 100.00 | 129.0 | |
| 30 | 7.51 | 15.50 | 26.20 | 37.70 | 57.90 | 76.90 | 104.00 | 134.0 | |
| 35 | 8.37 | 17.10 | 28.70 | 41.30 | 62.90 | 83.50 | 112.00 | 145.0 | |
| 40 | 9.23 | 18.70 | 31.20 | 44.90 | 67.90 | 90.20 | 120.00 | 155.0 | |
| 45 | 10.10 | 20.30 | 33.70 | 48.50 | 72.90 | 97.10 | 128.00 | 165.0 | |
| 50 | 11.00 | 21.80 | 36.20 | 52.00 | 77.90 | 103.00 | 136.00 | 176.0 | |
| 55 | 11.90 | 23.40 | 38.70 | 55.60 | 82.80 | 110.00 | 145.00 | 186.0 | |
| 60 | 12.70 | 25.00 | 41.30 | 58.20 | 87.80 | 117.00 | 153.00 | 196.0 | |
| 65 | 13.60 | 26.60 | 43.80 | 62.80 | 92.80 | 123.00 | 161.00 | 207.0 | |
| 70 | 14.40 | 28.20 | 46.30 | 66.40 | 97.90 | 130.00 | 169.00 | 217.0 | |
| 75 | 15.30 | 29.80 | 48.80 | 70.00 | 102.00 | 137.00 | 177.00 | 227.0 | |
| 80 | 16.20 | 31.40 | 51.30 | 73.60 | 107.00 | 144.00 | 186.00 | 238.0 | |
| 85 | 33.00 | 53.80 | 77.20 | 112.00 | 150.00 | 194.00 | 247.0 | ||
| 90 | 34.60 | 56.30 | 80.80 | 117.00 | 157.00 | 202.00 | 258.0 | ||
| 95 | 35.20 | 59.80 | 84.40 | 122.00 | 164.00 | 210.00 | 268.0 | ||
| 100 | 37.70 | 61.30 | 88.00 | 127.00 | 170.00 | 218.00 | 279.0 | ||
| 110 | 40.90 | 66.40 | 95.20 | 137.00 | 184.00 | 235.00 | 300.0 | ||
| 120 | 71.40 | 102.00 | 147.00 | 197.00 | 251.00 | 320.0 | |||
| 130 | 76.40 | 109.00 | 157.00 | 210.00 | 268.00 | 340.0 | |||
| 140 | 81.40 | 116.00 | 167.00 | 224.00 | 284.00 | 361.0 | |||
| 150 | 86.40 | 123.00 | 177.00 | 237.00 | 300.00 | 381.0 | |||
| 160 | 316.00 | 402.0 | |||||||
| 170 | 332.00 | 422.0 | |||||||
| 180 | 348.00 | 442.0 | |||||||
| 190 | 364.00 | 462.0 | |||||||
| 200 | 380.00 | 484.0 | |||||||
| Nom. Dia. (d) | M22 | M24 | M27 | M30 | |||||
| Thread Pitch | 2.5 | 3 | 3 | 3.5 | |||||
| K | Nominal | 14 | 15 | 17 | 18.7 | ||||
| Min. | 13.78 | 14.78 | 16.65 | 18.28 | |||||
| Max. | 14.22 | 15.22 | 17.35 | 19.12 | |||||
| s | Max. | 32 | 36 | 41 | 46 | ||||
| Min. | 31.61 | 35.38 | 40 | 45 | |||||
| L | WEIGHT IN KG/1000 PCS | ||||||||
| 25 | 155.0 | 199.0 | 280.0 | ||||||
| 28 | 161.0 | 200.0 | 292.0 | ||||||
| 30 | 168.0 | 214.0 | 310.0 | ||||||
| 35 | 181.0 | 229.0 | 319.0 | 424.0 | |||||
| 40 | 193.0 | 244.0 | 338.0 | 448.0 | |||||
| 45 | 206.0 | 259.0 | 358.0 | 472.0 | |||||
| 50 | 219.0 | 274.0 | 377.0 | 496.0 | |||||
| 55 | 232.0 | 289.0 | 397.0 | 519.0 | |||||
| 60 | 244.0 | 304.0 | 416.0 | 543.0 | |||||
| 65 | 257.0 | 319.0 | 435.0 | 566.0 | |||||
| 70 | 269.0 | 334.0 | 454.0 | 590.0 | |||||
| 75 | 282.0 | 348.0 | 473.0 | 614.0 | |||||
| 80 | 295.0 | 363.0 | 492.0 | 637.0 | |||||
| 85 | 308.0 | 378.0 | 512.0 | 661.0 | |||||
| 90 | 321.0 | 393.0 | 531.0 | 685.0 | |||||
| 95 | 333.0 | 408.0 | 550.0 | 708.0 | |||||
| 100 | 346.0 | 423.0 | 569.0 | 732.0 | |||||
| 110 | 371.0 | 453.0 | 608.0 | 779.0 | |||||
| 120 | 397.0 | 483.0 | 647.0 | 827.0 | |||||
| 130 | 421.0 | 513.0 | 685.0 | 874.0 | |||||
| 140 | 448.0 | 543.0 | 724.0 | 921.0 | |||||
| 150 | 473.0 | 572.0 | 762.0 | 969.0 | |||||
| 160 | 498.0 | 602.0 | 801.0 | 1010.0 | |||||
| 170 | 523.0 | 632.0 | 839.0 | 1060.0 | |||||
| 180 | 548.0 | 662.0 | 875.0 | 1110.0 | |||||
| 190 | 573.0 | 692.0 | 911.0 | 1160.0 | |||||
| 200 | 598.0 | 722.0 | 947.0 | 1210.0 | |||||
