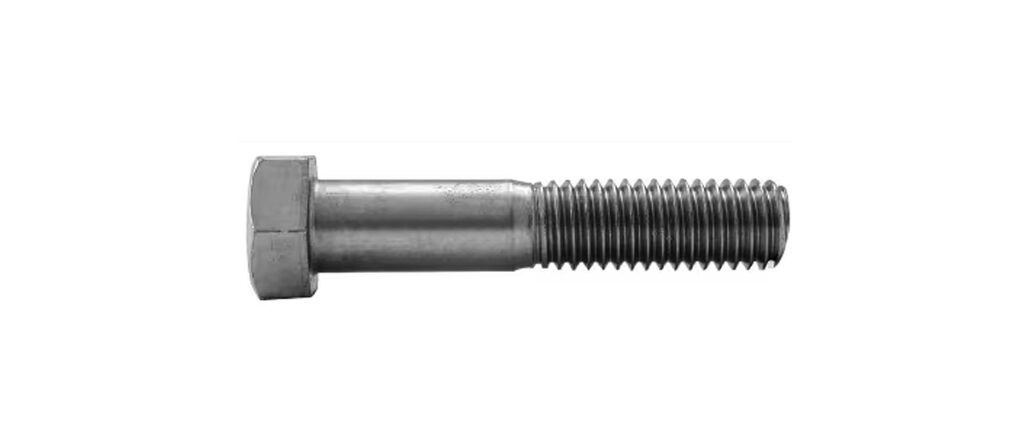

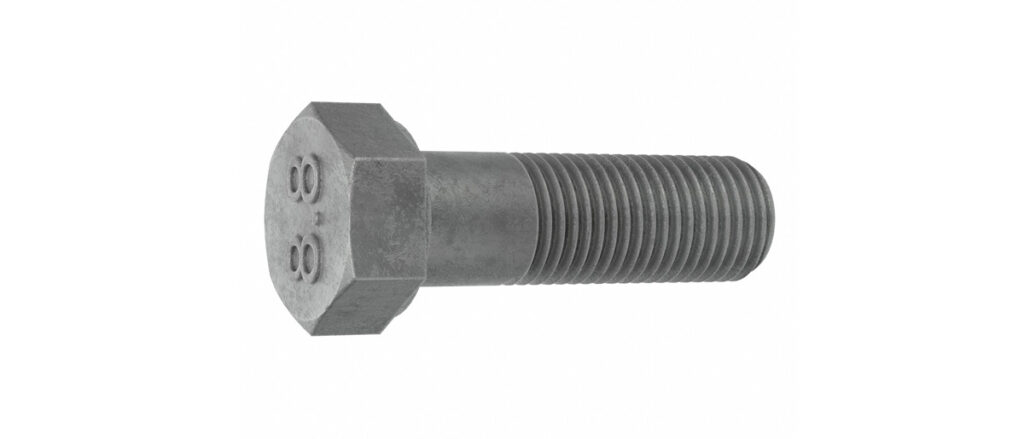

Half Thread Refind (DIN 960)
Equivalent Standards: ISO 8765 | UNI 5738 | EU 28676
Available in Class 8.8 and 10.9 steel, zinc plating inhibits the formation of rust while plain finish does not have any corrosion protection. Thread tolerance for Class 8.8 and 10.9 is 6g for plain finish and 6h for plated; right-hand threads are standard. Also called hex head cap screws, the bolt diameter and bolt length determine the minimum threaded length. The bolt’s length is measured from under the head to the tip. DIN 960 Hex Head Bolts are similar to ISO 8765 and JIS B1180. Use DIN 961 instead when fully threaded is required and DIN 931 for partially threaded coarse threads.
DIN 960
Material Grade: 8.8, 10.9
Finish: BZP, HOT DIP GALV.& BLACK, DACROMET, GEOMET
Thread: METRIC
DIN 960
Metric DIN 960 Hex Head Cap Screws / Bolts Part Thread, Fine Thread are externally threaded fasteners with a hexagonal washer faced head and a chamfered tip to facilitate mating with an internally threaded component. DIN 960 hex screws have a fully threaded, fine threaded shank and are manufactured to very strict tolerances. Aspen Fasteners offers one of the most complete ranges of metric crews, bolts and other inch and metric industrial fasteners for immediate delivery from stock. The following sizes of metric DIN 960 Hex Head Cap Screws / Bolts Part Thread, Fine Thread are available for immediate shipping from stock: Diameters ranging from M8 to M24 and lengths up to 150mm in plain and zinc plated steel.
Technical Specification for DIN 960 Half Thread Refind
| d1 | s | e | k | b= to 125 | b= to 150 | b= to 200 |
| M8 x 1 | 13 | 14.38 | 5.3 | 22 | 28 | |
| M10 x 1 | 17 | 18.9 | 6.4 | 26 | 32 | |
| M10 x 1.25 | 17 | 18.9 | 6.4 | 26 | 32 | |
| M12 x 1.25 | 19 | 21.1 | 7.5 | 30 | 36 | |
| M12 x 1.5 | 19 | 21.1 | 7.5 | 30 | 36 | |
| M14 x 1.5 | 22 | 24.49 | 8.8 | 34 | 40 | |
| M16 x 1.5 | 24 | 26.75 | 10 | 38 | 44 | |
| M18 x 1.5 | 27 | 30.14 | 11.5 | 42 | 48 | |
| M20 x 1.5 | 30 | 33.53 | 12.5 | 46 | 52 | |
| M20 x 2 | 30 | 33.53 | 12.5 | 46 | 52 | |
| M24 x 2 | 36 | 39.98 | 15 | 54 | 60 |
