Countersunk Head Screws With Hex Socket (IS 6761)
Equivalent Standard: ISO 10642
Socket countersunk head cap screws from BRK Industries are mainly used in applications which require a visually pleasing fastener with minimal load bearing capabilities. So, please note that these screws are not intended to be used in high strength applications. Sockets whose wear resistance is to be protected in the long run can use these screws instead of high strength countersunk screws. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant.

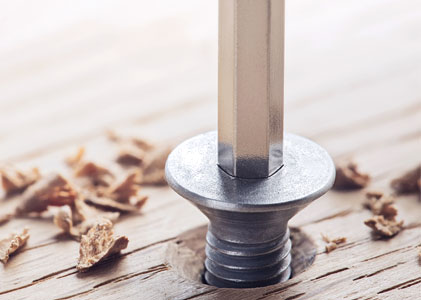

The procedure to tighten these in place on the surface is to apply the recommended level of torque on the nut while inserting and holding the key into the socket. If there is no sufficient space on the surface for wrenches to create an opening for screws, then the head of these countersunk socket screws is in the neat sitting of the screws on the surface and in the smooth construction of structures.
- IS 6761
- Material Grade: 8.8, 10.9, 12.9
- Finish: Self, Zinc Plated, Hot Dip Galvanized
- Threads: METRIC
IS 6761
Countersunk Head Screws With Hex Socket IS 6761 are utilized for applications which require incredibly high strength securing – generally steel to steel. The latches utilized in underlying applications are regularly more limited, more extensive and have a bigger bearing surface to build their heap bearing capacities. Underlying screws and nuts from BRK Industries agree with public and global norms like the ISO and ASTM. They come in treated steel, compound steel, and carbon steel materials and are electrifies for further developed solidness. We additionally give custom underlying clasp like washers for your bolts. Our latches arrive in a wide scope of measurements for every one of your prerequisites.

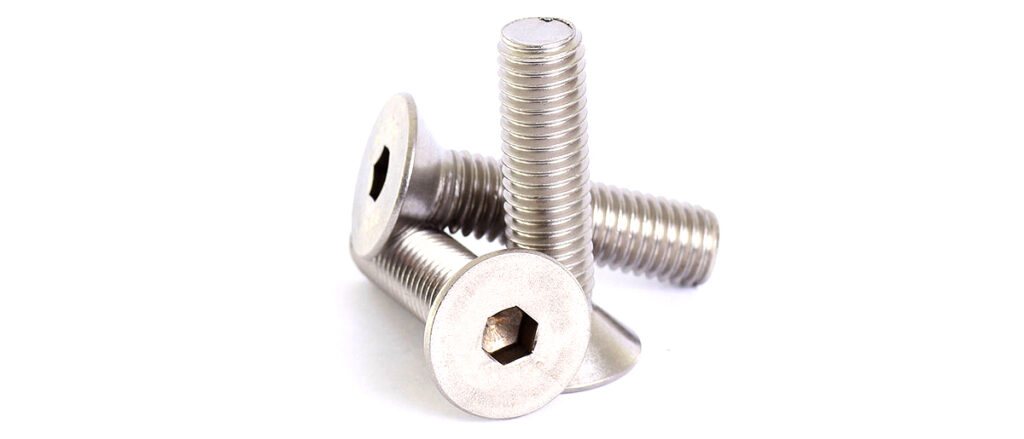

Countersunk Head Screws With Hex Socket IS 6761.

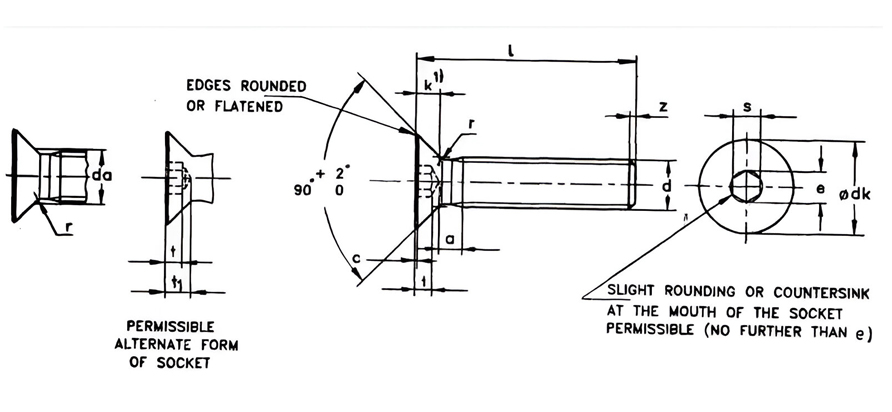

Technical Specification for IS 6761 Countersunk Head Screws With Hex Socket
| Threads Size d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
|---|---|---|---|---|---|---|---|---|---|
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 |
| c Nom | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max dk Min | 6 5.7 | 8 7.64 | 10 9.64 | 12 11.57 | 16 15.57 | 20 19.48 | 24 23.48 | 30 29.48 | 36 35.38 |
| k Nom | 1.7 | 2.3 | 2.8 | 3.3 | 4.4 | 5.5 | 6.5 | 7.5 | 8.5 |
| r Min | 0.1 | 0.2 | 0.2 | 0.30 | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 |
| da Max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 17.7 | 22.4 |
| Nom s Max Min | 2.0 2.1 2.02 | 2.5 2.60 2.52 | 3.0 3.10 3.02 | 4.0 4.12 4.02 | 5.0 5.14 5.02 | 6.0 6.14 6.02 | 8.0 7.175 8.025 | 10.0 10.175 10.025 | 12.0 12.212 |
| Max t Min | 1.2 0.95 | 1.8 1.55 | 2.3 2.05 | 2.5 2.25 | 3.5 3.2 | 4.4 4.1 | 4.6 4.1 | 5.3 5.0 | 5.9 5.6 |
| f1 Max | 1.85 | 2.69 | 3.18 | 3.58 | 4.42 | 6.01 | 6.85 | 8.10 | 8.70 |
| e Min | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 13.73 |
