Plow Head Square (DIN 608)
Equivalent Standard: UNI 5735
Plow bolt is a special fastener with a flat head and a square beneath the head similar to din 603 carriage bolt mainly used in snow plow used in snow season. #3 head size is most common size used in plow bolt(Din608) used to attach to the moldboard of a plow bulldozer or grader and are best used for applications where the fastener head is subjected to excessive amounts of wear and tear. Plow bolts are used to bolt the blade to moldboard and with nuts also used in road work for many snow plows and construction equipment .
- DIN 608
- Material Grade: 4.8, 5.8
- Finish: BZP, HOT DIP GALV. & BLACK
- Thread: METRIC
DIN 608
Plow bolt is a special fastener with a flat head and a square beneath the head similar to din 603 carriage bolt mainly used in snow plow used in snow season. #3 head size is most common size used in plow bolt(Din608) used to attach to the moldboard of a plow bulldozer or grader and are best used for applications where the fastener head is subjected to excessive amounts of wear and tear . Plow bolts are used to bolt the blade to moldboard and with nuts also used in road work for many snow plows and construction equipment.

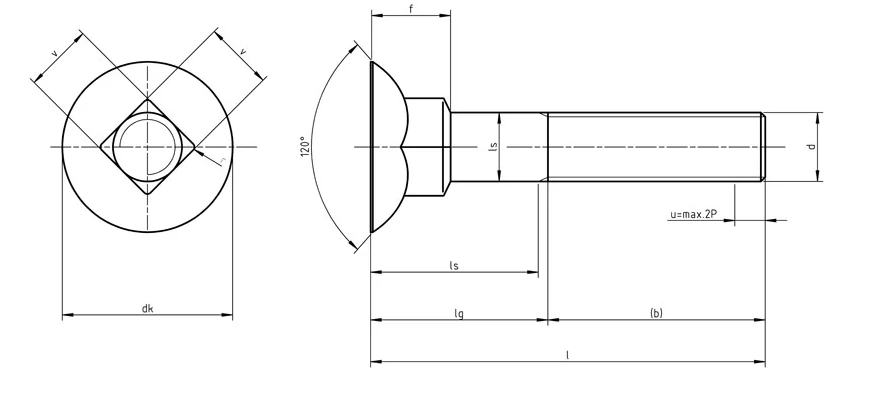

Technical Specification for Flat Countersunk Square Neck Bolts (DIN 608)
| Thread d | M10 | M12 | ||||
|---|---|---|---|---|---|---|
| P | 1,5 | 1,75 | ||||
| b | 26 | 30 | ||||
| dk | max. | 19,65 | 24,65 | |||
| min. | 18,35 | 23,35 | ||||
| ds | max. | 10 | 12 | |||
| min. | 9,42 | 11,3 | ||||
| f | max. | 8,45 | 11,05 | |||
| min. | 7,55 | 9,95 | ||||
| r | max. | 1,5 | 1,8 | |||
| v | max. | 10,58 | 12,7 | |||
| min. | 9,42 | 11,3 | ||||
